Chemical Industry



Picture of coloured liquids in scientific containers.



Pumps used in the Chemical Industry

Pump Type Description Application
Medium capacity horizontal, heavy duty, single-stage end suction process pump. Medium capacity horizontal, heavy duty, single-stage end suction process pump. Designed for continuous operation in the following industries, chemical and petro-chemical, fertilizer, pulp and paper and industrial effluent treatment.
Designed to pump non-corrosive, corrosive liquids with or without abrasive particles.
Fast efficiency re-establishment by way of in-situ impeller clearance adjustment for processes that need to operate continuously.
Large capacity horizontal, heavy duty, single-stage end suction process pump. Fitted with repalceable/adjustable wear plates. Large capacity horizontal, heavy duty, single-stage end suction process pump. Fitted with repalceable/adjustable wear plates. Designed for continuous operation in the following industries, chemical and petro-chemical, fertilizer, pulp and paper and industrial effluent treatment.
Designed to pump non-corrosive, corrosive liquids with or without abrasive particles. Fast efficiency re-establishment by way of in-situ impeller clearance adjustment for processes that need to operate continuously.

Close-coupled, single-stage, magnetic drive, horizontal end-suction centrifugal pump ( Monoblock ).    Close-coupled, single-stage, magnetic drive, horizontal end-suction centrifugal pump.          ( Monoblock )  Sealless leak-free design for all chemical applications.
Long coupled, single-stage, magnetic drive, horizontal end-suction centrifugal pump.       Long coupled, single-stage, magnetic drive, horizontal end-suction centrifugal pump.      Sealles leak-free design for the most agressive of chemical applications.
Single stage, horizontal split casing pump fitted with double-entry radial impeller.  Single stage, horizontal split casing pump fitted with double-entry radial impeller. Transfering aggressive and non-agressive liquids in chemical and petro-chemical markets, variuos processes in refineries,, pulp and paper industries and food and pharmaceutecal industries, the sugar industry, in seawater desalination plants, power plants etc.
Single-stage horizontal, radially split pump in back pull-out design to API 610, with radial impeller; centreline mount.   Single-stage horizontal, radially split pump in back pull-out design to API 610, with radial impeller; centreline mount.   Oil refineries, oil platforms, petrochemical and chemical industries.
Single or multistage, vertical turbine pump with single entry mixed flow impeller/s. Pumps available in wet pit, can type or pontoon mount installations.  Single or multistage, vertical turbine pump with single entry mixed flow impeller/s. Pumps available in wet pit, can type or pontoon mount installations.  Refineries, petro-chemical and chemical industries pumping lyes, brines, leachates, acid water, sea water, mine process return water.
Horizontal or vertical end suction centrifugal pumps. Fitted with Torkflo impeller allowing large throughlet. Pump design accomodates replaceable wearplates and external impeller adjustment.  Horizontal or vertical end suction centrifugal pumps. Fitted with Torkflo impeller allowing large throughlet. Pump design accomodates replaceable wearplates and external impeller adjustment.  Designed for continuous operation in the chemical and process industries, pulp and paper industries, fertilizer, petroleum and sugar industries.
Designed to pump viscous and non-viscous liquids with abrasive particles. Fast efficiency re-establishment by way of in-situ impeller clearance adjustment for processes that need to operate continuously.

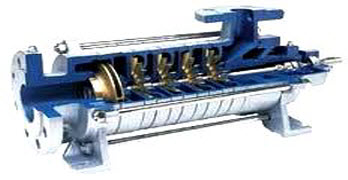

Side channel pumps  Side channel pumps.  Designed for low flow high head applications where entrained gases are present. Low NPSH requirements and excellent self priming capability.
Internal gear pumps.  Internal gear pumps.  High pressure transfer of petro-chemical products. Oils, resins, starches etc.
Twin and triplex rotary screw positive displacement pumps.  Twin and triplex rotary screw positive displacement pumps.  High pressure transfer of petroleum based products.
Dosing/metering pumps. Diaphragm or plunger type.  Dosing/metering pumps. Diaphragm or plunger type.  Fine control of precise volumes of chemicals for the treatment of a wide spectrum of fluids.
Horizontal self-priming pumps with replaceable wearplates. Pumps available with water-recirc or vac-assisted priming systems.  Horizontal self-priming pumps with replaceable wearplates. Pumps available with water-recirc or vac-assisted priming systems.  Pumping poluted liquids, lyes, brines, leachates, acid water, sea water, mine process return water in applications where low to medium heads are required. These pumps are capable of priming with suction lifts of up to 7.5m.
Peristaltic pumps.    Peristaltic pumps. Hose pumps for difficult applications such as thickener underflow, sludge, slurries, chemical additives and resins. Hoses available in natural rubber, Buna-n, EPDM, Hypalon and Viton
Progressive cavity pumps.  Progressive cavity pumps.  For difficult applications where a gentle pulse-free, shear free pumping operation is required such as flocculants, thickener underflow, sludge and chemical additives. Stators available in natural rubber, Buna-n, EPDM and Viton.
Air operated double diaphragm pumps.  Air operated double diaphragm pumps.  Metallic and non-metallic pumps for a multitude of different chemical applications.
